2 Way Speaker System

PRIME Series blends refined sound quality with a sleek, modern design, built for those who want their system to sound clean and look bold. It delivers balanced response, clear detail, and controlled dynamics for a confident listening experience in every drive.

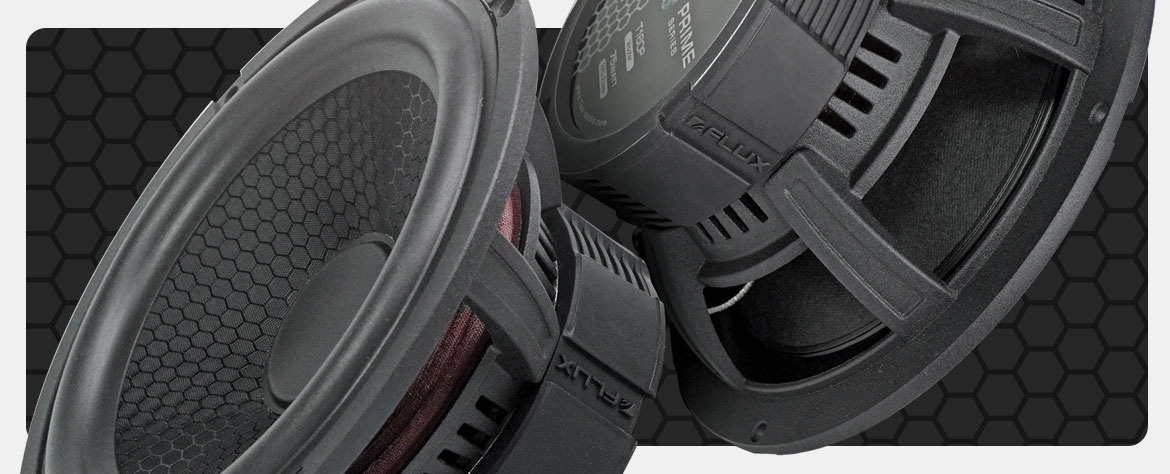

Built with pressed paper cone with a hexagonal pattern design that reinforces the cone structure, helping maintain stiffness while keeping it lightweight for controlled and accurate movement, delivering balanced tonal response with punchy midbass and clear, natural detail.

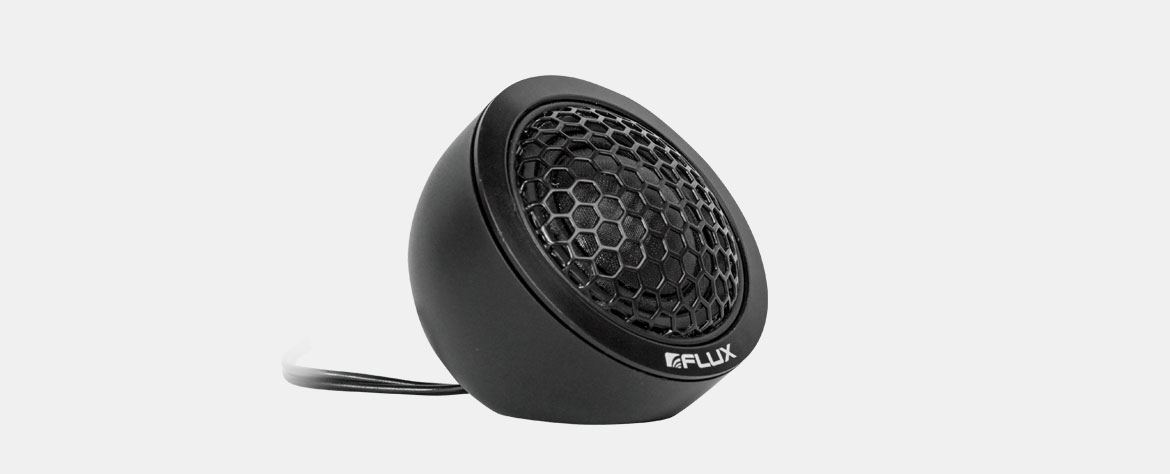

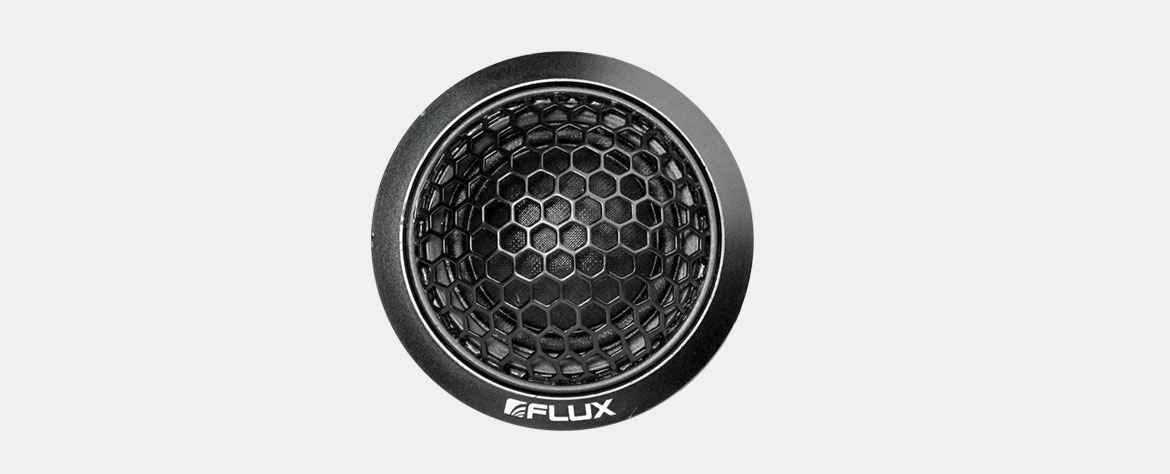

featuring 25mm v/c tweeter with a specially coated silk dome, the tweeter delivers smooth high frequencies with refined detail and natural clarity, while the aluminum housing enhances structural stability and reduces unwanted resonance.

PRIME also offers the flexibility to evolve into a 3-Way System through the addition of the optional FLUX PRIME 3.5-inch midrange speaker

SPECIFICATION

Woofer Size & Mounting Depth
6.5"/ 165 mm & 75 mm Mount Depth
Woofer Cone & Dust Cap
Semi Pressed Paper with Special Coated
Basket
Alumunium Die Cast

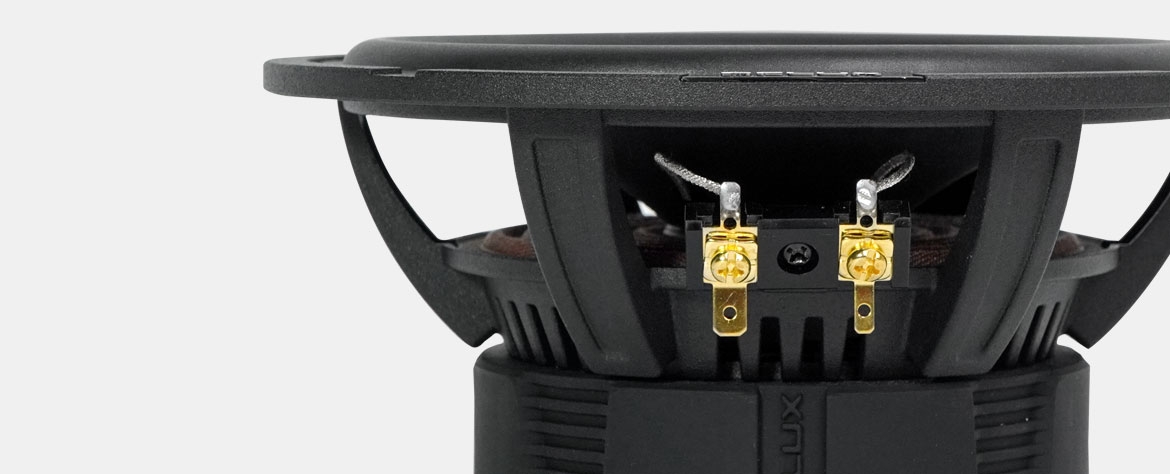

Connector
Gold Plated
Power & Impedance
35W RMS/ 75W Max Power, 3 Ohm Impedance
Tweeter V/C Size
25 mm
Tweeter Material
Silk Dome with Special Coat, Aluminium Housing Case Tweeter
Freq. Resonance (FO)
57 Hz
Mechanical Q (QMS)
6.09
Electrical Q (QES)
0.70
Total Q (QTS)
0.63
SPL 1W / 1m
87.5 dB
